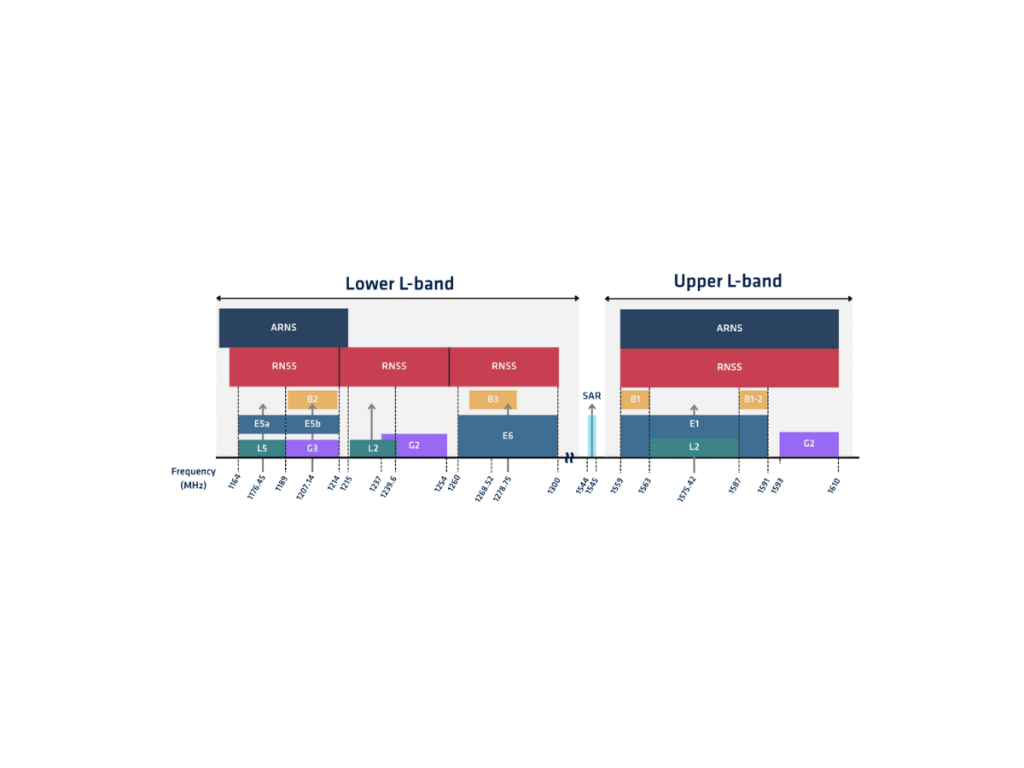

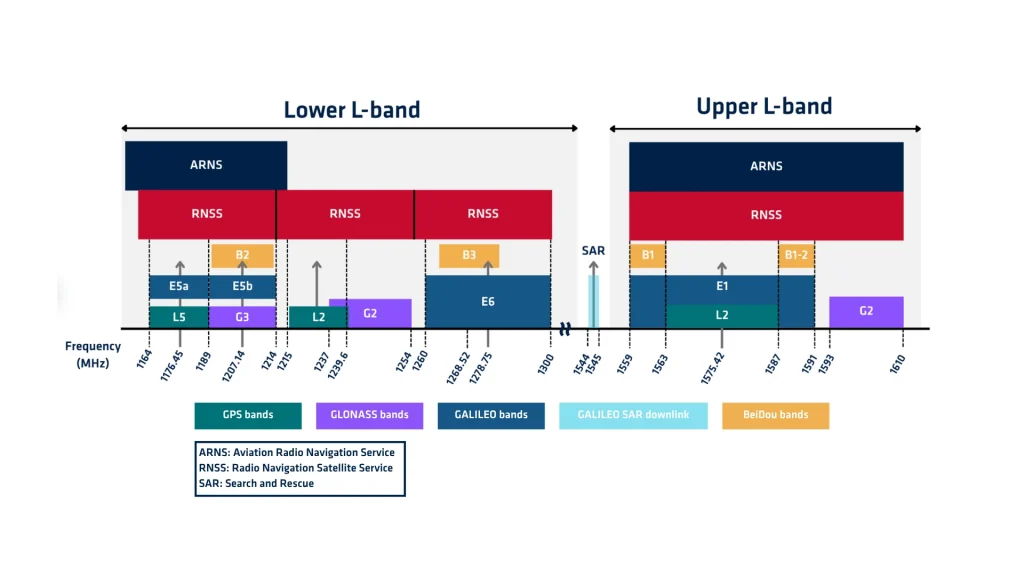

GNSS frequencies refer to the specific radio frequency bands used by satellite navigation systems to transmit signals to receivers on Earth. These signals carry essential information for calculating position, velocity, and time. Each GNSS constellation—such as GPS, GLONASS, Galileo, and BeiDou—uses its own set of frequencies.
First, the GPS system primarily uses L1 (1575.42 MHz), L2 (1227.60 MHz), and L5 (1176.45 MHz) frequencies. L1 carries the standard positioning service for civilian use. L2 and L5 provide additional accuracy and signal redundancy.
Next, GLONASS transmits on similar bands but uses frequency division multiple access (FDMA). Its L1 band operates near 1602 MHz, while L2 is near 1246 MHz. This approach allows GLONASS satellites to broadcast on different channels within the same band.
Galileo, the European system, uses E1 (1575.42 MHz), E5a (1176.45 MHz), E5b (1207.14 MHz), and E6 (1278.75 MHz) frequencies. These bands overlap with GPS and support interoperability. BeiDou, China’s GNSS, transmits on B1 (1561.098 MHz), B2 (1207.14 MHz), and B3 (1268.52 MHz) frequencies. These signals ensure global coverage and compatibility with other systems.
Dual- or multi-frequency receivers use two or more bands to correct signal errors. For example, they mitigate ionospheric delays and improve accuracy. This makes them suitable for high-precision applications.
Moreover, modern GNSS receivers combine signals from multiple constellations. This multi-constellation capability enhances positioning reliability, especially in obstructed environments.
Signal modulation and coding also vary across frequencies. Each frequency carries unique codes that help distinguish between satellites. These differences improve tracking performance and error correction.
In conclusion, GNSS frequencies are critical for signal transmission, accuracy, and system compatibility. Using multiple frequencies enhances robustness and ensures precise navigation in a wide range of applications and environments.
Do you have questions?
GPS definition
GPS definition: GPS (Global Positioning System) is a satellite-based navigation system that provides location, velocity, and precise time information anywhere on Earth, under all weather conditions, as long as there is an unobstructed line of sight to four or more GPS satellites.
Developed and maintained by the United States Department of Defense, GPS consists of three segments:
- Space Segment: A constellation of at least 24 satellites orbiting Earth.
- Control Segment: Ground stations that monitor, control, and maintain the satellites.
- User Segment: GPS receivers (in smartphones, cars, aircraft, ships, etc.) that compute position using signals from the satellites.
