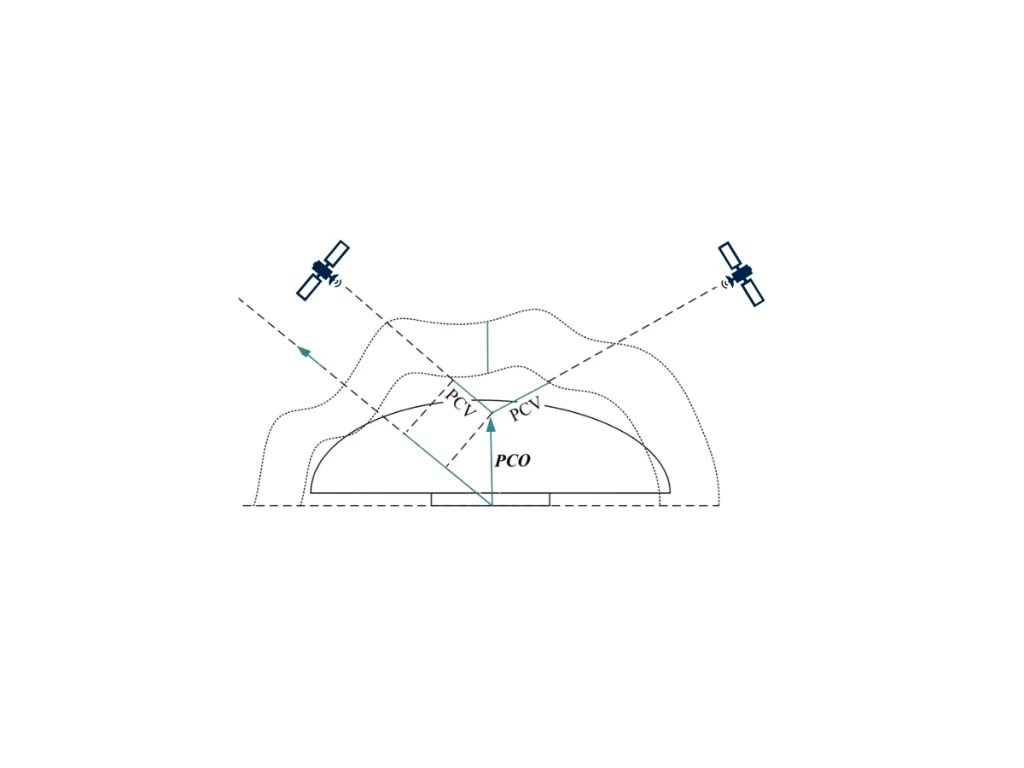

Phase Center Variation (PCV) refers to the changes in the effective receiving point of a GNSS antenna. The phase center is where signals are measured. However, it is not a fixed point. It shifts depending on satellite elevation, azimuth angle, and signal frequency.
First, PCV results from the antenna’s physical structure and internal signal path. This causes signal reception to vary across different angles. For example, signals arriving from low elevations may experience larger variations than those from overhead.
Next, PCV introduces measurement errors in GNSS observations. These errors affect phase measurements and reduce position accuracy. In high-precision applications, even millimeter-level variations matter. Therefore, GNSS systems must correct for PCV. Antenna manufacturers perform calibration to measure PCV patterns. These patterns are specific to each antenna model and sometimes each unit. Then, software applies these corrections during data processing. The corrections depend on satellite geometry and signal path. Ignoring PCV can distort baseline solutions and vertical positions. Additionally, PCV is different from Phase Center Offset (PCO). PCO is a constant vector, while PCV is a directional variation. Both must be modeled for reliable GNSS positioning.
Geodetic-grade antennas include PCV correction files. These files follow the ANTEX format and define corrections for multiple frequencies. Users import them into GNSS processing software. Furthermore, absolute calibration methods provide the most accurate PCV data. They use controlled environments and robotic systems for high-precision measurements. Relative calibration is less precise but still common.
Finally, correcting PCV is essential for applications like Real-Time Kinematic (RTK) and Precise Point Positioning (PPP). It ensures consistent results across various observation conditions. Phase Center Variation significantly affects GNSS accuracy. Accurate calibration and correction of PCV improve measurement reliability for geodesy, surveying, and navigation.
Difference between PCV and PCO
Phase Center Offset (PCO) and Phase Center Variation (PCV) are both characteristics of GNSS antennas that affect signal accuracy. PCO refers to the constant, fixed offset between the antenna’s physical reference point and the average phase center. It is a static vector used in positioning calculations. In contrast, PCV represents the dynamic variation of the antenna’s phase center depending on signal direction, such as satellite elevation and azimuth. While PCO is corrected as a fixed value, PCV requires a model or calibration file. Accurate GNSS positioning relies on correcting both PCO and PCV for optimal precision and reliability.
